名称:GM60 Series
Download

Application:
食物处理器 Food Processor
烤箱 Oven
Model    型号 Stack Thickness
芯片厚度(mm)
Rated Voltage
额定电压
loaded speed
额定负载转速
Free Load Power Input
空载输入功率
Insulation Class
绝缘等级
GM6010 10 100-240V 50/60Hz 8-90 rpm 10-50W A/B/E/F/H
GM6016 16
GM6020 20
GM6025 25
GM6030 30
GM6035 35

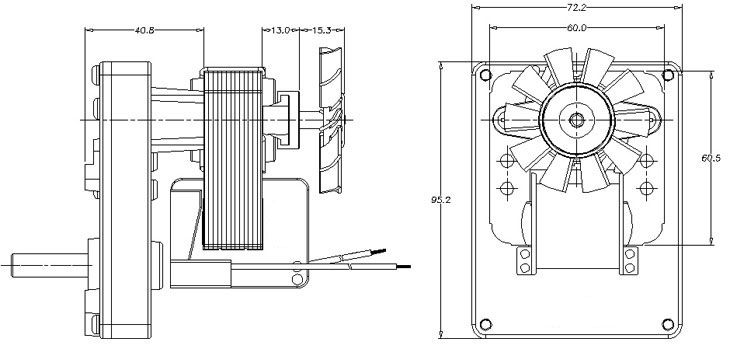

Model:GM60

GM6030 120V 60Hz
Item
项目
Current
电流(A)
Speed
转速(rpm)
Torque
扭力(g-cm)
Output
输出功率(W)
Efficiency
效率(%)
Free Load
空载
1.329 3520 - - -
Max.Eff.
最大效率
1.418 3062 610 19.60 23.60
Max.Output
最大输出功率
1.476 2787 750 21.70 23.0
